LT-932-OLED 32CH CV DMX DECODER
Description

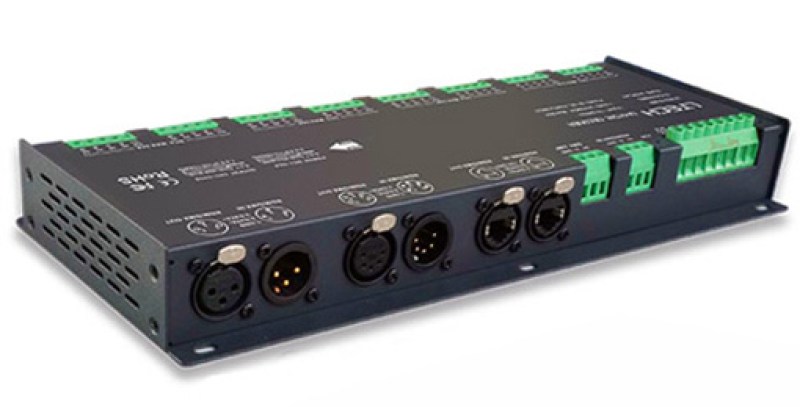

LT-932-OLED 32CH CV DMX DECODER
Designed for Hi-power multiple channels application, 32 channels output, and Max. 3A current per channel, up to 2304W output power.
Easy operation with OLED screen and the touch buttons.
4 kinds of mode optional: single color, color temperature, RGB, RGBW.
Support 4 kinds of DMX ports with signal isolation function: 3-pin XLR, 5-pin XLR,RJ45 and green terminal (with signal amplifier function).
With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting,equipment recognition, etc.
With photoelectric isolation function.
With shortcut protection and over load protection, as well as warning function when fault.
With fast self-testing function.
16bit / 8bit resolution optional.
Multiple dimming curve (0.1~9.9) optional.
| Input signal | DMX512/RDM |
| Input voltage | DC12V～DC24V |
| Max load current | 3A ×32CH Max. 96A |
| Max output power | (0~36W...72W) x32CH Max.2304W |
| DMX512 socket | XLR-3, XLR-5, RJ45, Green terminal |
| Control mode | DIM/CT/RGB/RGBW |
| DIM Curve | 0.1～9.9 |
| Gray scale level | 8bit(256 levels)/16bit(65536 levels) |
| Photoelectric Isolation | Yes |
| Working temperature | -30℃～65℃ |
| Dimension | L300×W122×H39(mm) |
| Package Size | L309×W127×H41(mm) |
| Weight (G.W) | 1050g |
